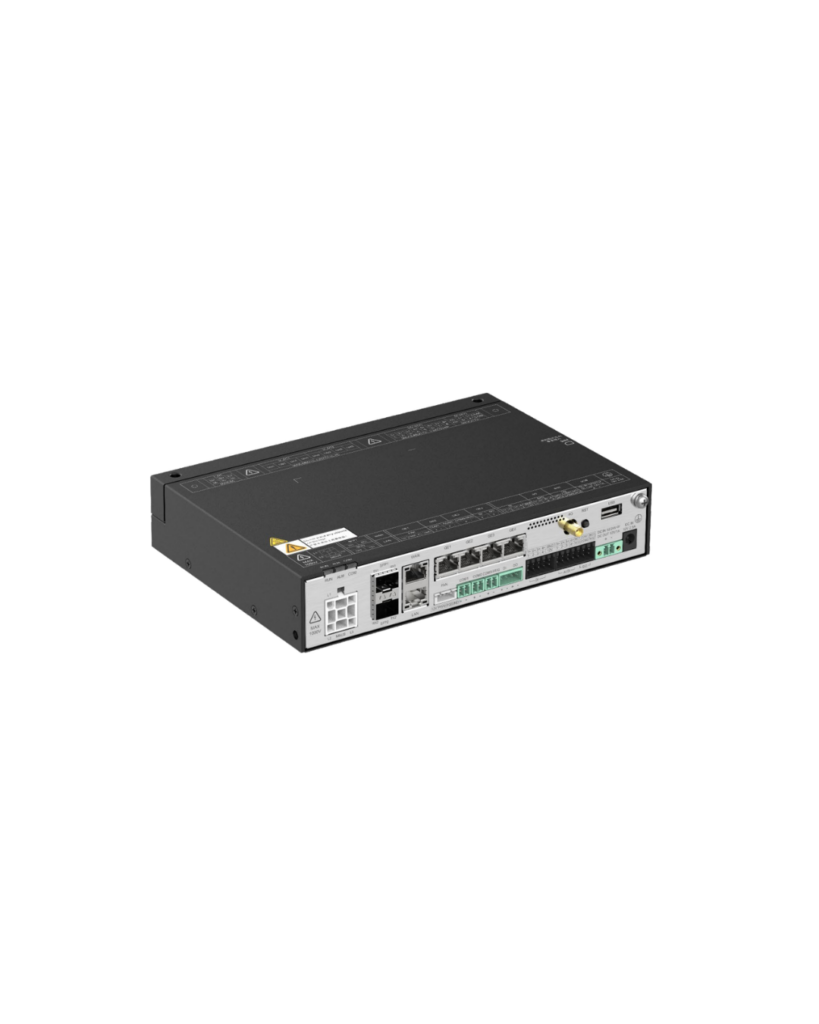

HUAWEI SmartMGC5000B06GL

The SmartMGC5000B is a highly integrated C&I controller that supports grid
connection, seamless on/off-grid switching, and off-grid control scenarios.
It supports various microgrid features, such as detection of grid exception,
synchronous control, and one-click automatic black start.
In addition, it supports optical fiber and GE/FE ring networking, and provides
functions such as device access and convergence, protocol conversion, data collection,
data storage, centralized monitoring, centralized maintenance, and power control.

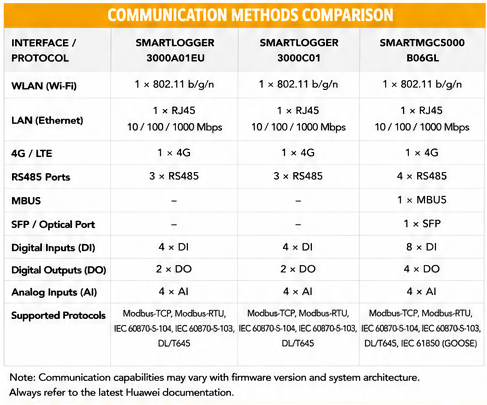

• Communications ports: WAN, LAN, GE, MBUS, Optical Fiber, RS485, 2G/3G/4G, ELV DI/DO, Electrical DI/DO, AI/DI
• Electricity measurement:
  • Voltage measurement: 6 ports; measurement precision: 0.5%
  • Current measurement: 3 ports; measurement range: 5 A; measurement precision: 0.5%
  • Frequency measurement: measurement range: 40Hz-70H; measurement precision: ±0.01Hz
• Software functions
  • Scenario: ESS and PV+ESS in grid-connected; seamless on/off-grid switching; off-grid operation
  • Maximum number of connected devices: Only PV: 80*inverters; Only Battery: 50*ESS cabinets, 10MWh; PV+Battery: 30*inverters+20*ESS cabinets
• Environment:
  • Operating temperature: –40°C to +60°C
  • Maximum altitude: 5000 m
• Electrical specifications:
  • AC power supply: Adapter: 100–240 V, 50 Hz/60 Hz
  • DC power supply: 12/24 V
• Mechanical specifications:
  • Dimensions (W x H x D): 225 mm x 160 mm x 44 mm
  • Weight: 2 kg
  • IP rating: IP20
